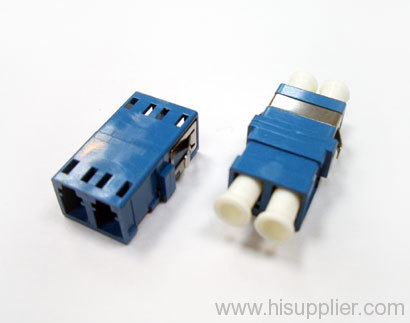

LC fiber optic adapter
Price: |
1.0~5.0 USD |
Payment Terms: |
t/t,wu,paypal |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
LC
Production Capacity:
10000pcs/week
Delivery Date:
1-5 days
Multimode:
bronze sleeve
Means of Transport:
express, dhl,ups,ems, tnt
Packing:
PE bag
Brand Name:
MSD
Single mode:
zirconia
LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors
and duplex LC adaptors, usually duplex LC fiber adaptors are with SC
LC fiber optic adapter
LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors
and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC.
LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.
Features:
Low Insertion Loss and High Return Loss
High Reliability and Stability
Accurate dimensions
Good Durability and Interchangeabilty
Good Durabilty and Temperature Performace
Specifications:
Insertion Loss: ≤ 0.2dB(PC/SM), ≤ 0.3dB(PC/MM)
Return Loss: ≥ 45dB(PC)
Durability: ≤ 0.2dB typical change 1000,matings
Operating Temperature:-40 ~ + 85℃
Applications:
FTTX, FTTH
LAN, WAN
Optical Fiber Communication Systems
Telecommunication Networks
CATV/Data Processing Networks
Industtial, Mechanical and Military
Performance index:
Product | LC Adapter |
Mode | S.M | M.M(P.B) |
Insertion Loss | ≤0.2dB | ≤0.3dB |
Return Loss | ≥45dB | -- -- |
Mating Durability(500times) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
Temperature Stability(-40℃~85℃) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
Operating Temperature | -40℃~+85℃ |
Storage Temperature | -40℃~+85℃ |
