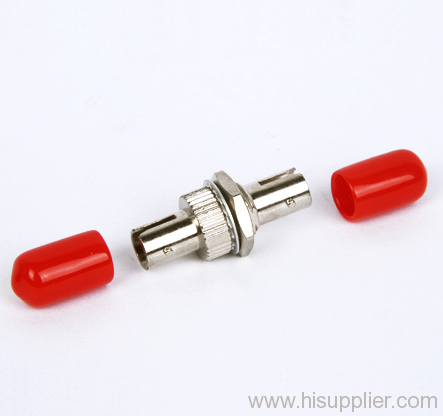

ST fiber optic adapter
Price: |
1.0~5.0 USD |
Payment Terms: |
t/t,wu,paypal |
Place of Origin: |
Guangdong, China (Mainland) |
Product Detail
Model No.:
ST
Production Capacity:
10000pcs/week
Delivery Date:
1-5 days
coupling body material:
zinc alloy
Means of Transport:
upon customers' request
Packing:
pe bag
Brand Name:
msd
standard:
NTT
ST fiber optic adaptors are all threaded type, with metal housing, single mode ones are with zirconia sleeve and multimode ones are with bronze sleeve
ST fiber optic adapter
ST fiber optic adaptors are all threaded type, with metal housing, single mode ones are with zirconia sleeve and multimode ones are with bronze sleeve. ST fiber optic adaptors are simplex adaptors.
Features:
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Available for D-shaped and Rectangular mount
Coupling body zinc alloy for long life
Threaded with nuts or snap-in coupling, easily install in panel mount
Compliant with TIA/EIA 568A and Bellcore GR-910-CORE
Compliant with IEC874-10
All parts compliant with ROHS
Specifications:
Insertion Loss: ≤ 0.2dB
Durability: ≤ 0.2dB typical change 1000,matings
Operating Temperature:-40 ~ + 85℃
Applications:
FTTX, FTTH
LAN, WAN
Optical Fiber Communication Systems
Telecommunication Networks
CATV/Data Processing Networks
Industtial, Mechanical andl Military
Performance index:
Product | ST Adapter |
Mode | S.M | M.M |
Insertion Loss | ≤0.2dB | ≤0.3dB |
Return Loss | ≥45dB | -- -- |
Mating Durability(500times) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
Temperature Stability(-40℃~85℃) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
Operating Temperature | -40℃~+85℃ |
Storage Temperature | -40℃~+85℃ |
